DMC-14x5
For new applications, Galil recommends the new DMC-3x01x single-axis controllers.
The DMC-1415 and DMC-1425 are economical, one and two axis motion controllers with an Ethernet 10Base-T and RS232 port. The controllers are available as a card-level product or in a metal enclosure with a power supply.
With a 32-bit microcomputer, the single and dual axis controllers provide such advanced features as PID compensation with velocity and acceleration feedforward, program memory with multitasking for simultaneously running two applications programs, and uncommitted I/O for synchronizing motion with external events. Modes of motion include point-to-point positioning, jogging, contouring, electronic gearing and ecam. The DMC-1415 single-axis controller accepts inputs from two encoders which is useful for electronic gearing applications. The DMC-1425 dual-axis controller includes linear and circular interpolation for precise, coordinated XY motion. The DMC-1425 can be specified to operate two servo or two stepper motors.
Like all Galil controllers , DMC-14x5 programming is simplified with two-letter, intuitive commands and a full set of software tools for servo tuning and analysis.
- For new applications, Galil recommends the new generation DMC-30000 series single-axis controllers
- DMC-1415: 1-axis; DMC-1425: Controls 2 steppers or 2 servos
- Provides Ethernet 10BASE-T and one RS232 port up to 19.2 kb
- Ethernet supports multiple masters and multiple slaves
- Supports ModBus protocol for communication with I/O devices
- Accepts up to 12 MHz encoder frequencies for servos and 3 MHz for steppers
- Available in card-level format or as a box-level product which accepts 90-260 VAC
- Advanced PID compensation with Velocity and Acceleration feedforward, integration limits and notch filter
- Modes of motion: jogging, point-to-point positioning, contouring, electronic gearing and ECAM
- DMC-1415 accepts inputs from two encoders for gearing or dual-loop applications
- DMC-1425 includes linear and circular interpolation mode for coordinated XY motion
- Multitasking for concurrent execution of two application programs
- Non-volatile memory for application programs, variables and arrays
- DMC-1415: 7 uncommitted digital inputs, 3 digital outputs, 2 analog inputs
- DMC-1425: 3 uncommitted digital inputs, 3 digital outputs, 2 analog inputs
- Expansion for 64 I/O with DB-14064(only available with Card Level product)
- Forward and reverse limits and home input
- High speed position latch and output compare
- DMC-14x5-CARD 3.75" x 5.0"; DMC-14x5-BOX 5.10" x 3.0" x 6.8"
- Communication drivers for Windows, QNX, and Linux
-
| Part Number | Description | 1 pc | 100 pc |
|---|---|---|---|
| DMC-1415 | Ethernet 1-axis CARD | $665 | $440 |
| DMC-1415-BOX | Ethernet 1-axis BOX | $875 | $600 |
| DMC-1425-SERVO | Ethernet 2-axis servo CARD | $770 | $495 |
| DMC-1425-SERVO-BOX | Ethernet 2-axis servo BOX | $980 | $650 |
| DMC-1425-STEPPER | Ethernet 2-axis stepper CARD | $770 | $495 |
| DMC-1425-STEPPER-BOX | Ethernet 2-axis stepper BOX | $980 | $650 |
| DMC-34x5 | Distributed option- no extra charge | $0 | $0 |
| -16 bit ADC for analog inputs | 16-bit analog-to-digital | $110 | $70 |
| AMP-14110-100mA | 1-axis 100mA servo amp | $75 | $55 |
| AMP-14110-1A | 1-axis 1A servo amp | $100 | $80 |
| AMP-14120-100mA | 2-axis 100mA servo amp | $125 | $105 |
| AMP-14120-1A | 2-axis 1A servo amp | $150 | $130 |
| ICM-1460 | Interconnect module | $155 | $100 |
| ICM-1460-OPTO | ICM with optoisolation | $205 | $150 |
| ICM-1460-STEPPER | Interconnect module for steppers | $155 | $100 |
| Image | Part Number | Description |
|---|---|---|
|

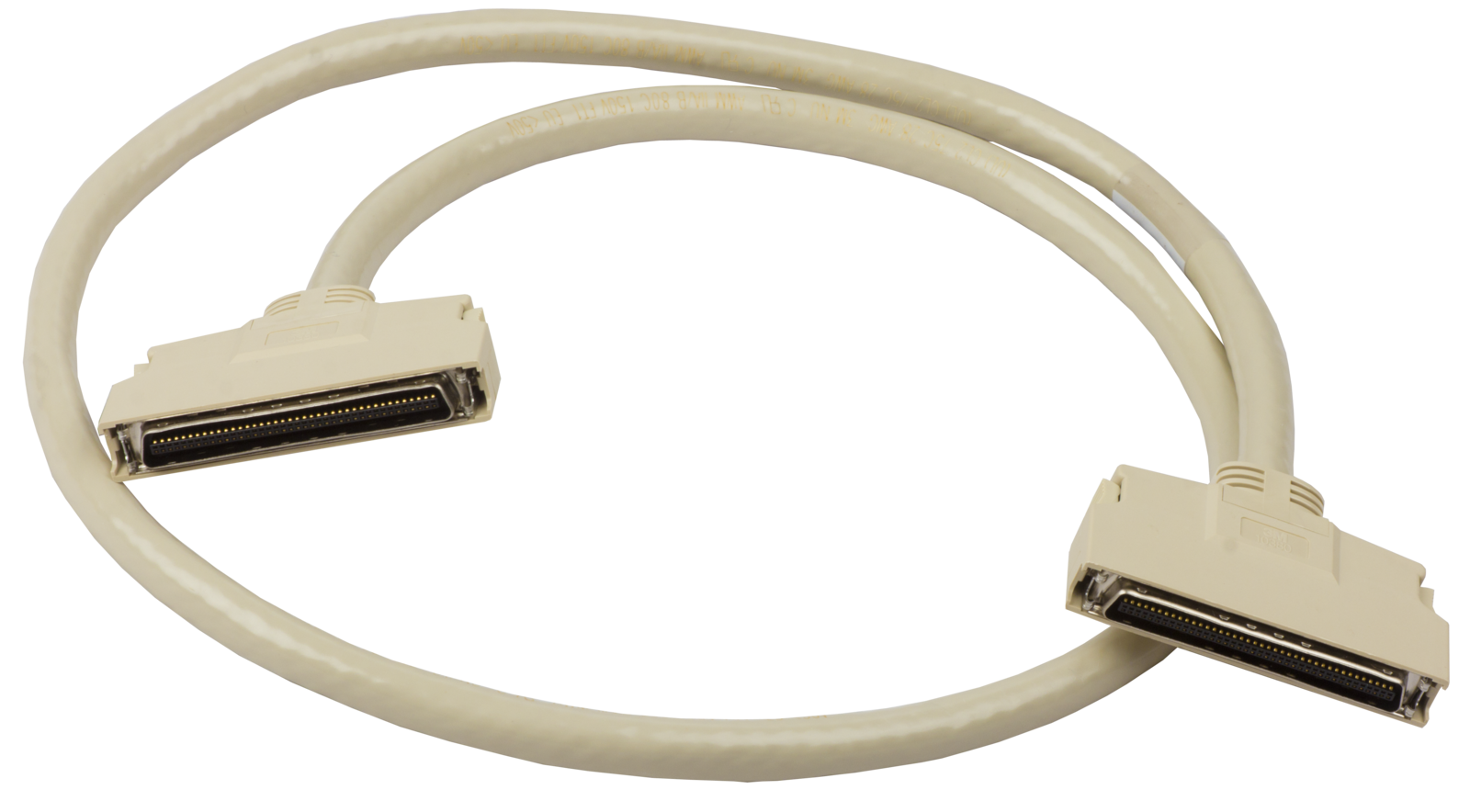

CABLE-80-1m | Extended I/O cable; 1 meter |
|

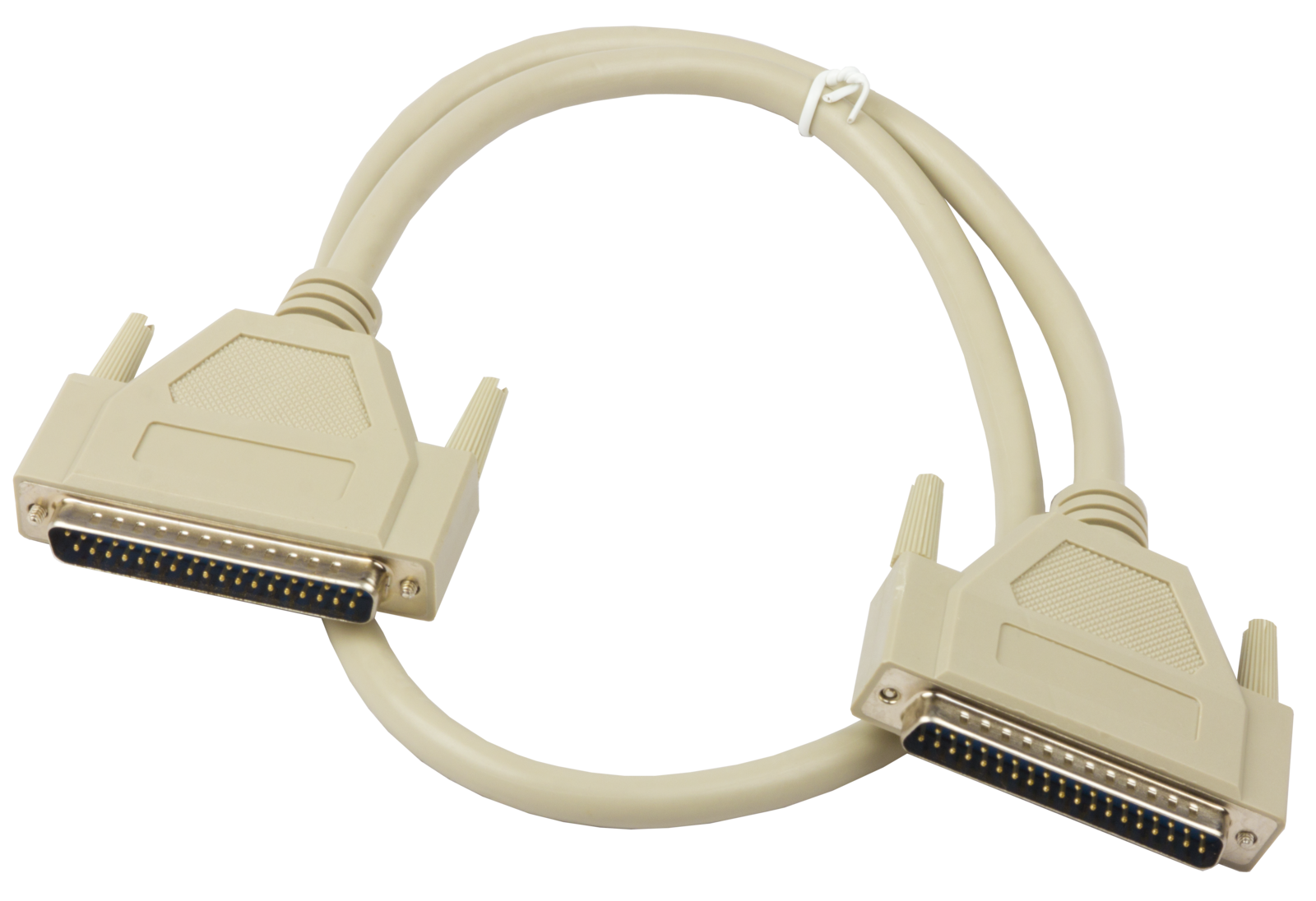

CABLE-37-pinD | 37-pin cable |
|
CABLE-9-PIN-D | RS232 female to female straight through cable |
| -16 bit ADC for analog inputs | 16-bit analog-to-digital | |
| -DC converter option | option for DC power input (BOX only) | |
| CB-50-80 | 50-pin to 80-pin (for DB-14064) |
