Joining the growing family of drive options for the DMC-30000 Pocket Motion Controller Series is the new DMC-30016 Stepper Drive. The DMC-30016 is a single axis motion controller combined with a 1.4A, 30V stepper drive in a cost-effective, compact package.
The DMC-30016 drive operates a two-phase bipolar stepper motor in full-step, half-step, 1/4 step or 1/16 step. It is user configurable from 0.5A to 1.4A per phase in 10mA increments at 12-30VDC. The dimensions of the DMC-30016 controller and drive package are 3.9” x 5.0” x 1.5”, and no external heatsink is required.
The new DMC-30016 controller/stepper drive is $645 U.S. in single quantity and $415 in quantities of 100.

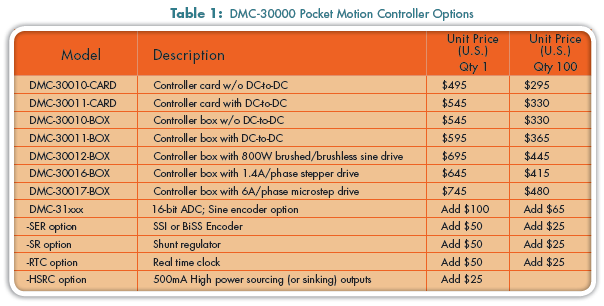

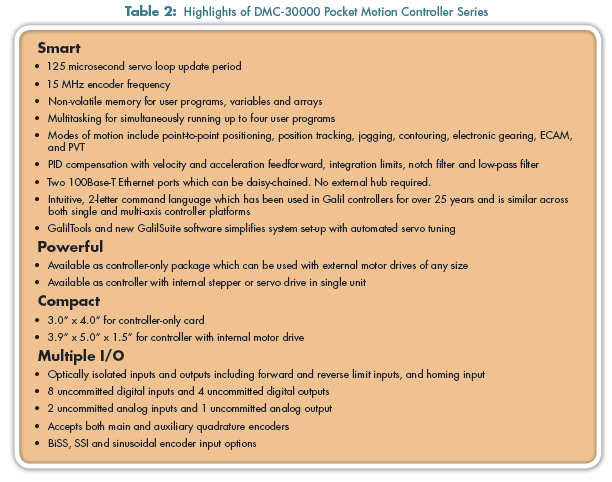

Other drive options for the DMC-30000 Pocket Motion Controller Series include the DMC-30012 800W brushless sine drive and the DMC-30017 6A/phase microstepping drive. Currently available models and options for the DMC-30000 Pocket Motion Controller Series are listed in Table 1 and highlights of the DMC-30000 Series are listed in Table 2.
Complete pricing and specifications for the DMC-30000 Pocket Motion Controller Series, are available at: http://www.galil.com/motion-controllers/single-axis/dmc-3x01x or contact a Galil application engineer at 800-377-6329 or support@galil.com.
